SPECIFICATIONS
Container Canopy Model:

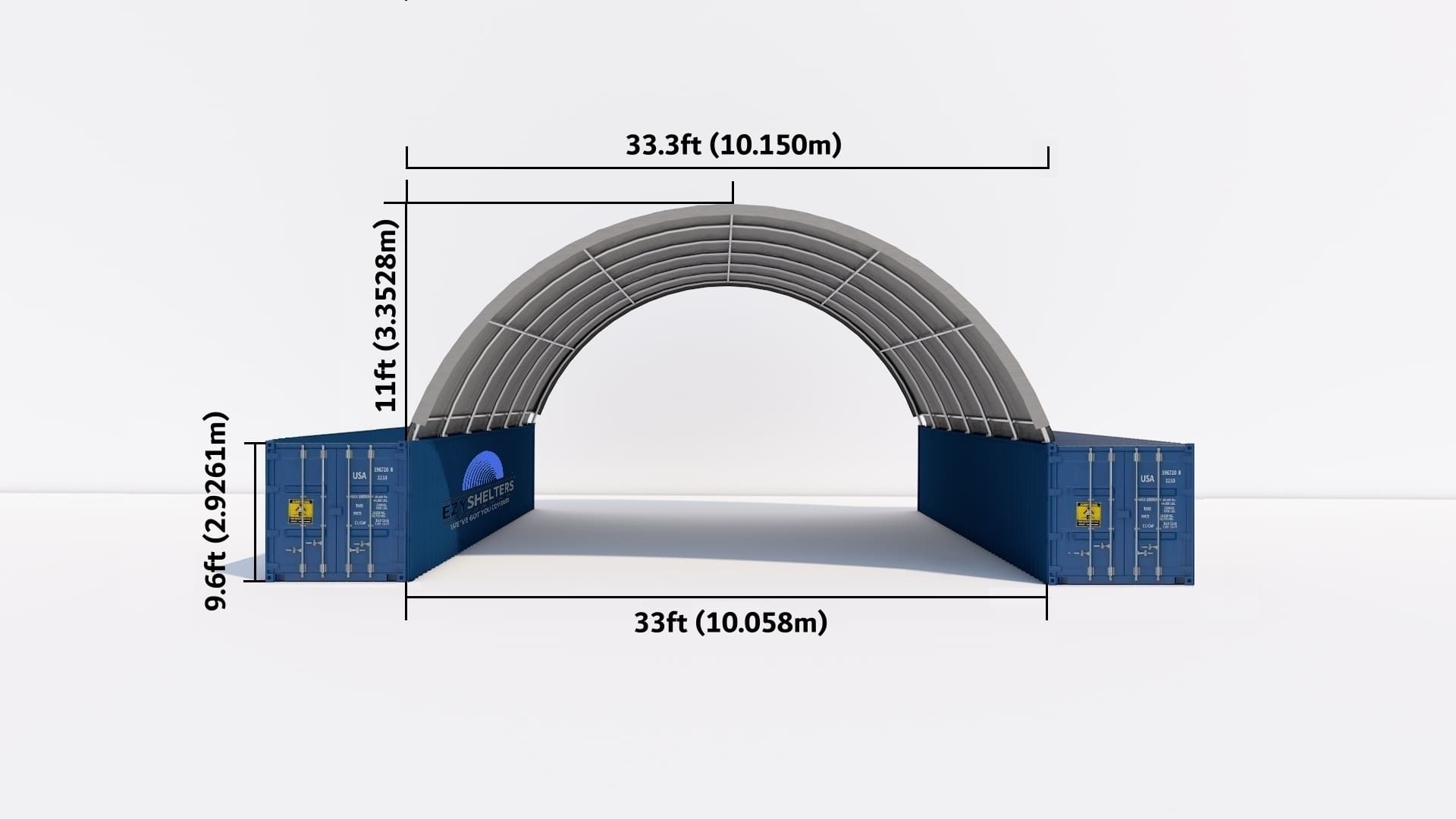

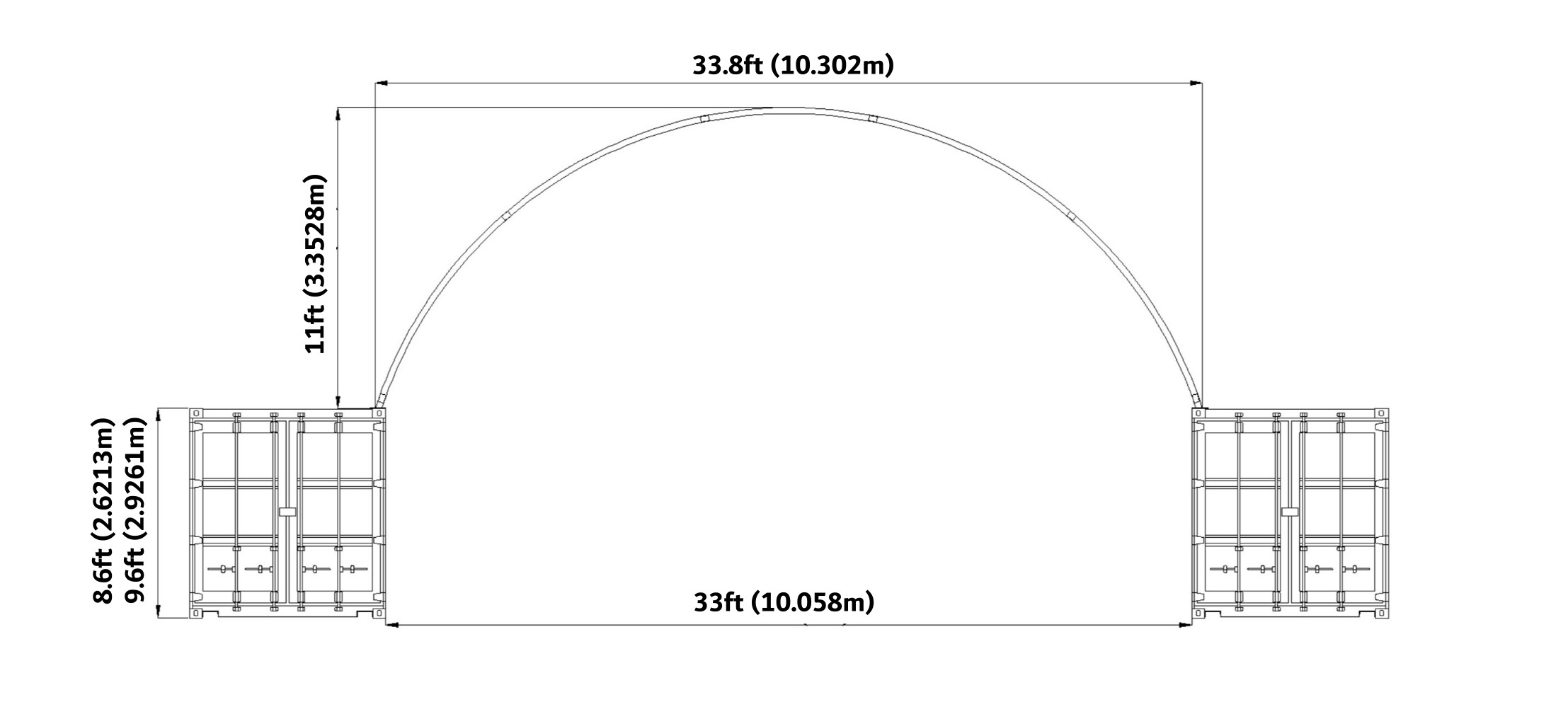

33’W x 40’L x 11’H Single Truss
10mW x 12mL x 3.4mHItem No:
EZY334011STSize:
33’W x 40’L x 11’HFrame:
Single truss galvanised Q235 steel round tube 76mm (3"), 7 arches, 5 rows of purlins, vee bracing at either end.Heavy Duty PVC cover:
Heavy Duty Ripstop. 650gsm. UV treated Fire retardant, Acrylic coated. 10 year pro rated warranty.
Attached to tension bars with ratchet straps.Wind rated:

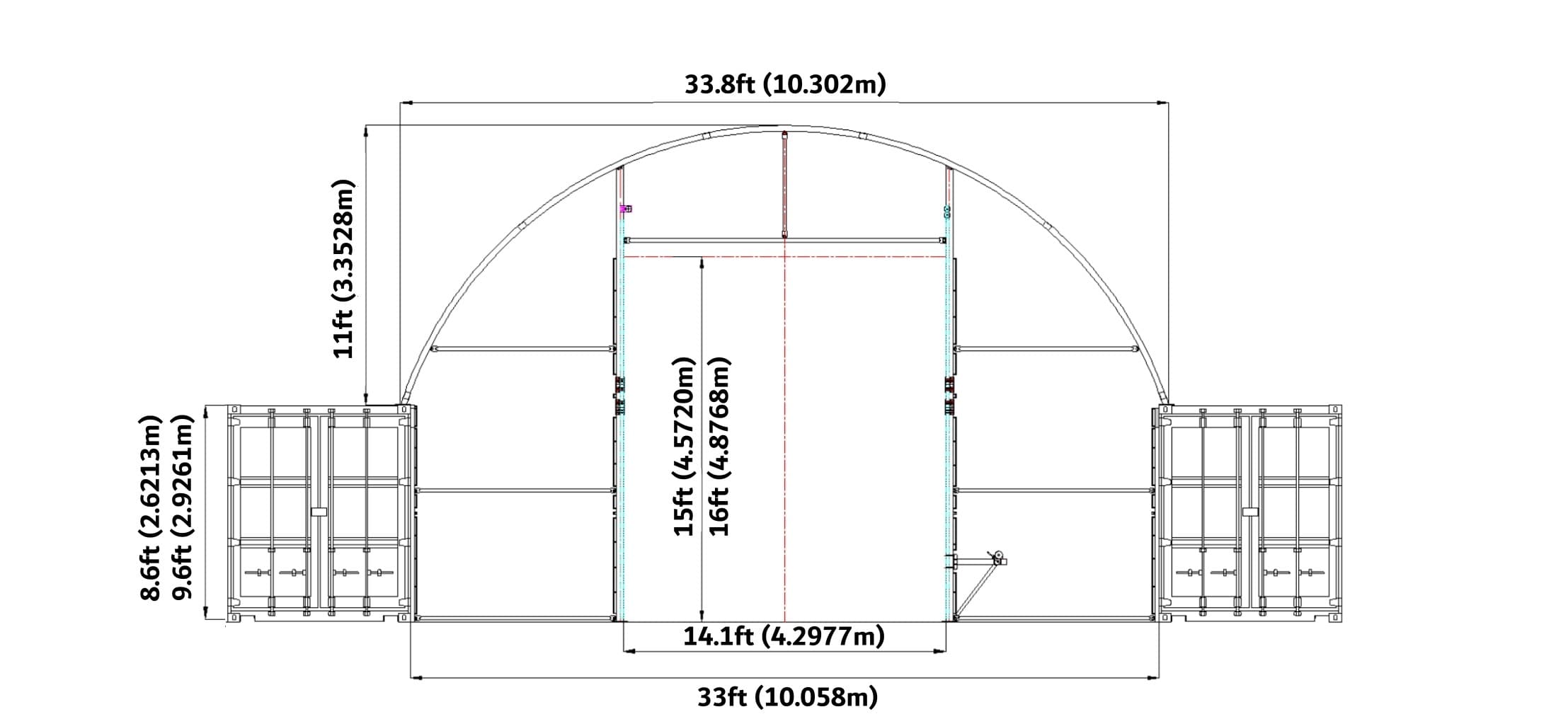

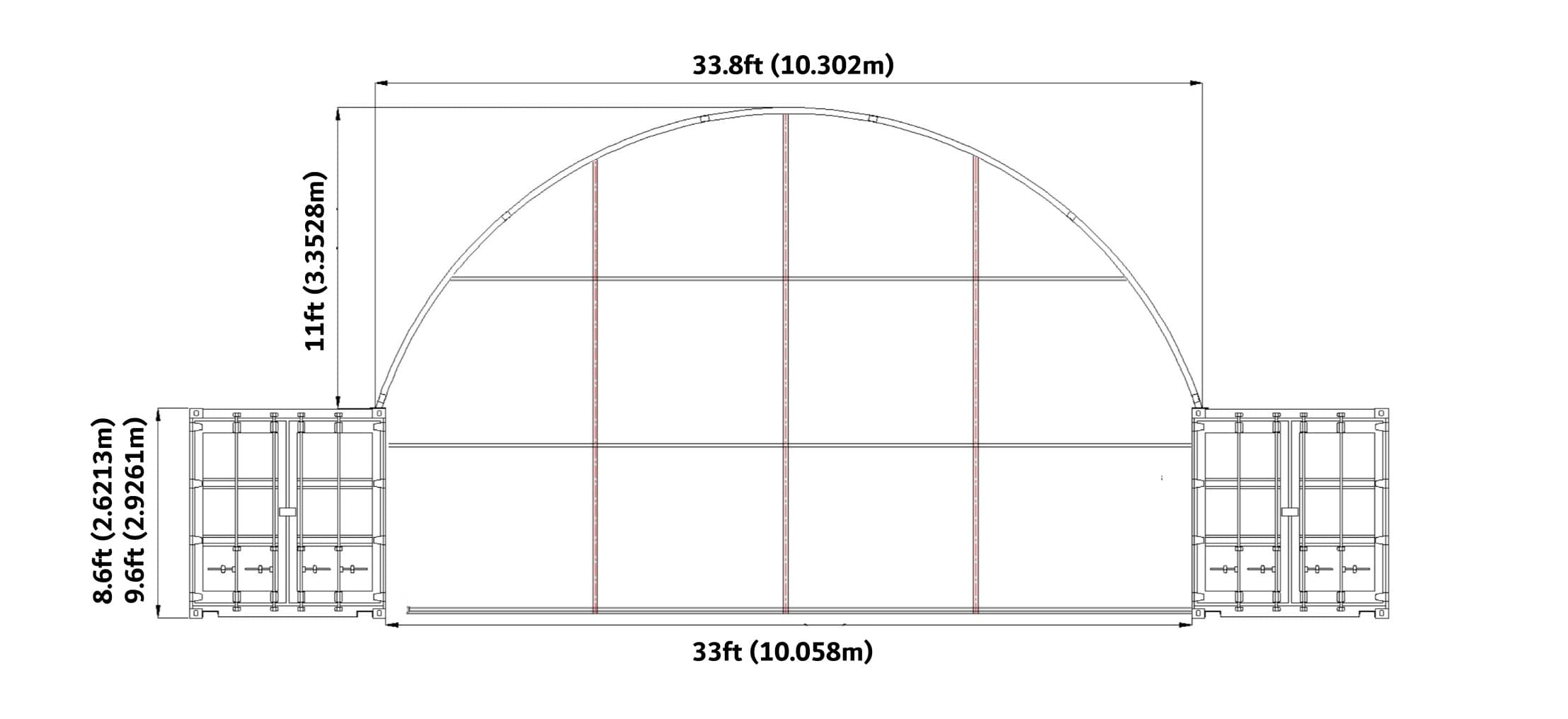

105mphEnd walls: • Half wall comes with 3 vents and supports• Back wall comes with 3 vents and supports• Front wall with mechanical PVC rollup doorPackaging:
1 x Steel crate. Dimensions:
2’8”(32”)H x 3’8”(44”)W x 9’7”(115”)LWeight:
2,500lbsInstallation:
NO WELDING REQUIRED. Tech screw the mounting plates to the containers.Time for installation:
Allow 2 days with 2 persons. Weather permitting.Installation manual available.
Detailed step by step instructions comes with photographs.
Machinery required:
23' scissor lift.
