SPECIFICATIONS

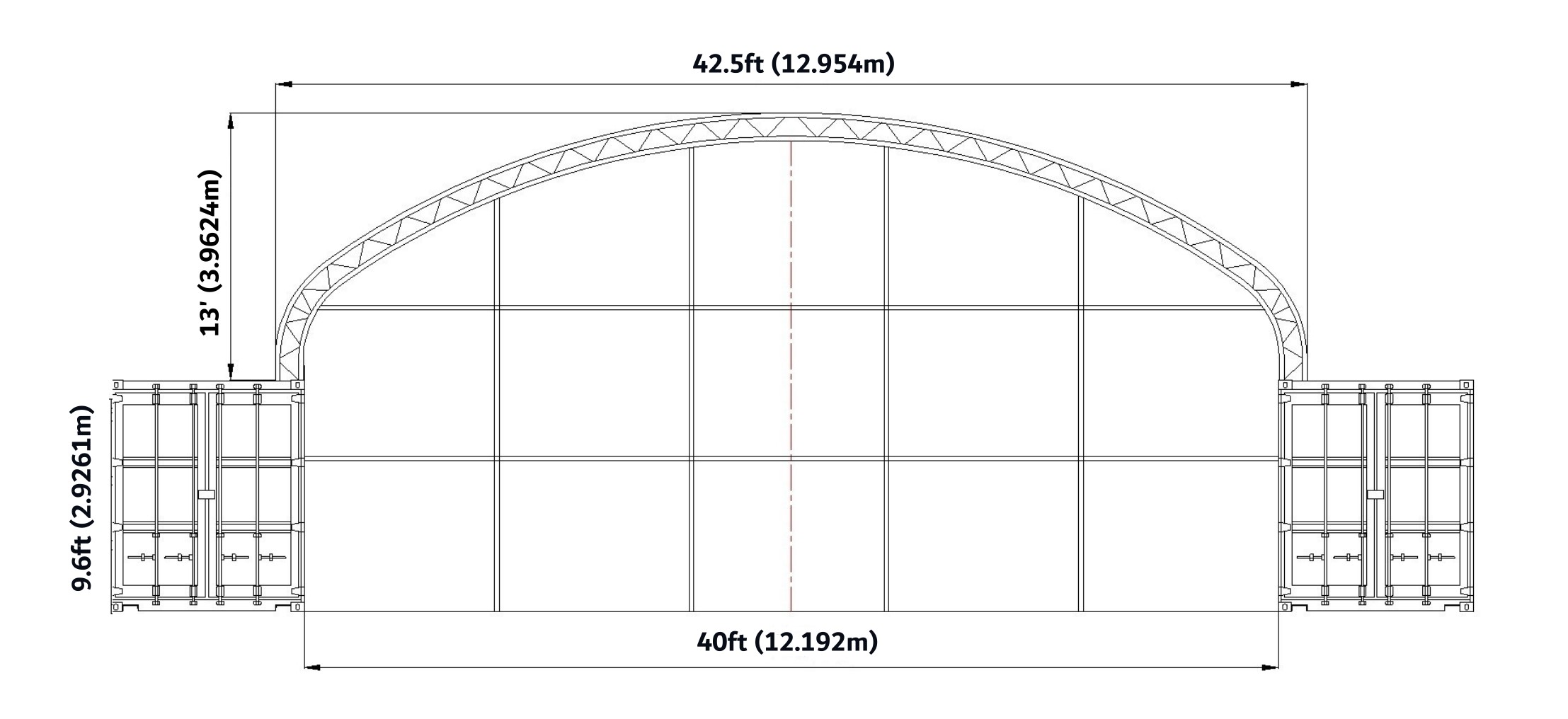

Container Canopy Model:40’W x 40’L x 13’H Double TrussItem No:
EZY404013DTSize:
40’W x 40’L x 13’HFrame:
Double truss galvanised Q235 steel round tube, 6 arches, 5 rows of purlins, Vee bracing at either end.PVC cover:
Heavy duty Ripstop 650gsm. UV treated, Fire retardant, Acrylic coated. 10 year pro rated warranty.Wind rated:
120mphAlso available:• Half wall c/w 3 vents and supports• Back wall c/w 3 vents and supports• Front wall with mechanical PVC rollup doorPackaging:
2 x Steel cratesBox Dimensions:Box A:
4’2”(1.27m)H x 3’8”(1.1m)W x 9’7”(2.92m)LBox B:
2’8”(.5m)H x 3’8”(1.1m)W x 9’7”(2.92m)LBox Weights:Box A:
2,870lbs (1300kgs)Box B:
995lbs(450kgs)Installation:
Weld 12 mounting plates to the containers.Time for installation:
Allow 3 days with 2 persons. Weather permitting.Installation manual available.
Detailed step by step instructions comes with photographsMachinery required:
Welder. 23’ scissor lift
