SPECIFICATIONS

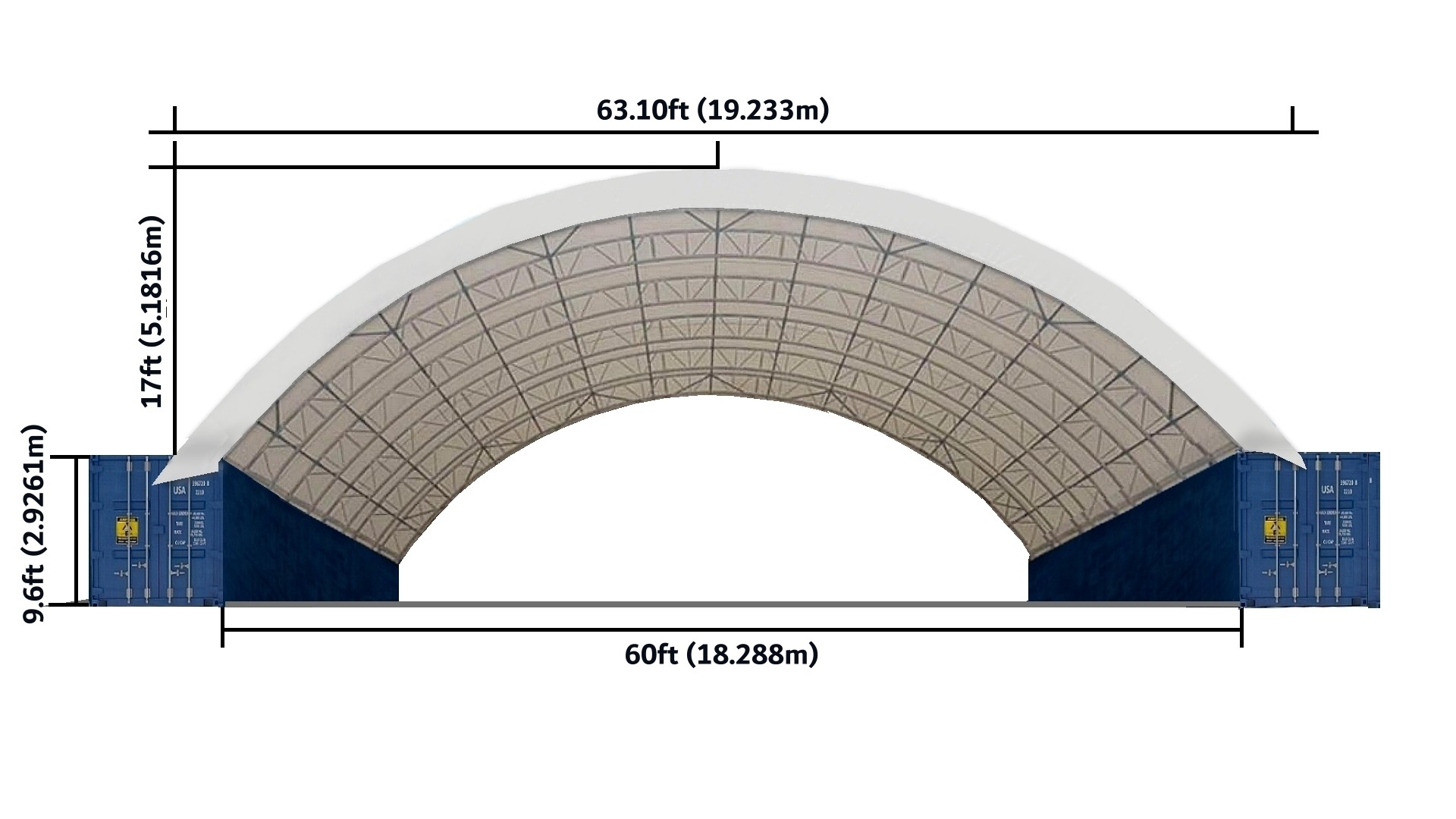

Container Canopy Model:60’W x 40’L x 17’H Double TrussItem No:
EZY604017DTSize:
60’W x 40’L x 17’HFrame:
Double truss galvanised Q235 steel round tube, 6 arches, 5 rows of purlins, Vee bracing at either end.PVC cover:
Heavy duty Ripstop 650gsm. UV treated, Fire retardant, Acrylic coated, 10 year pro rated warranty.Wind rated:

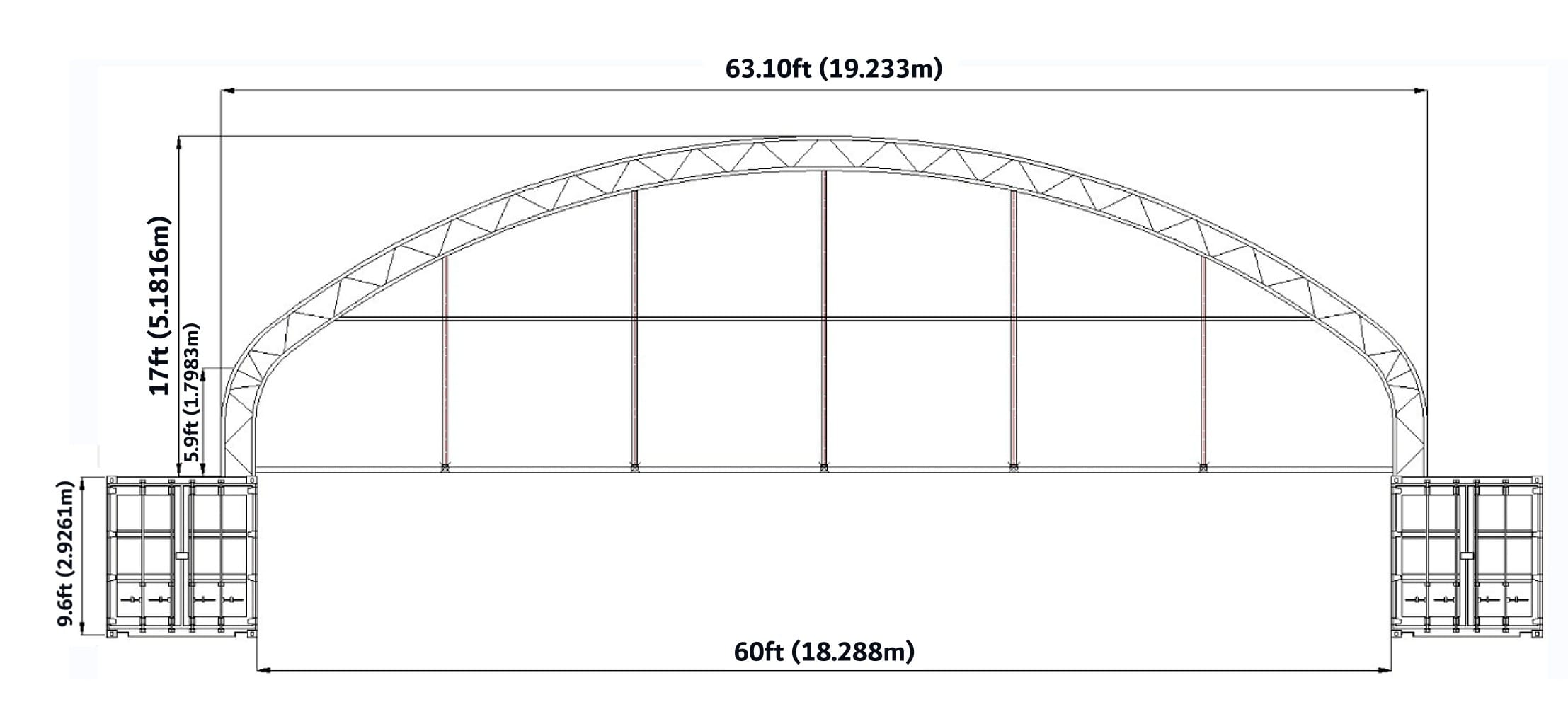

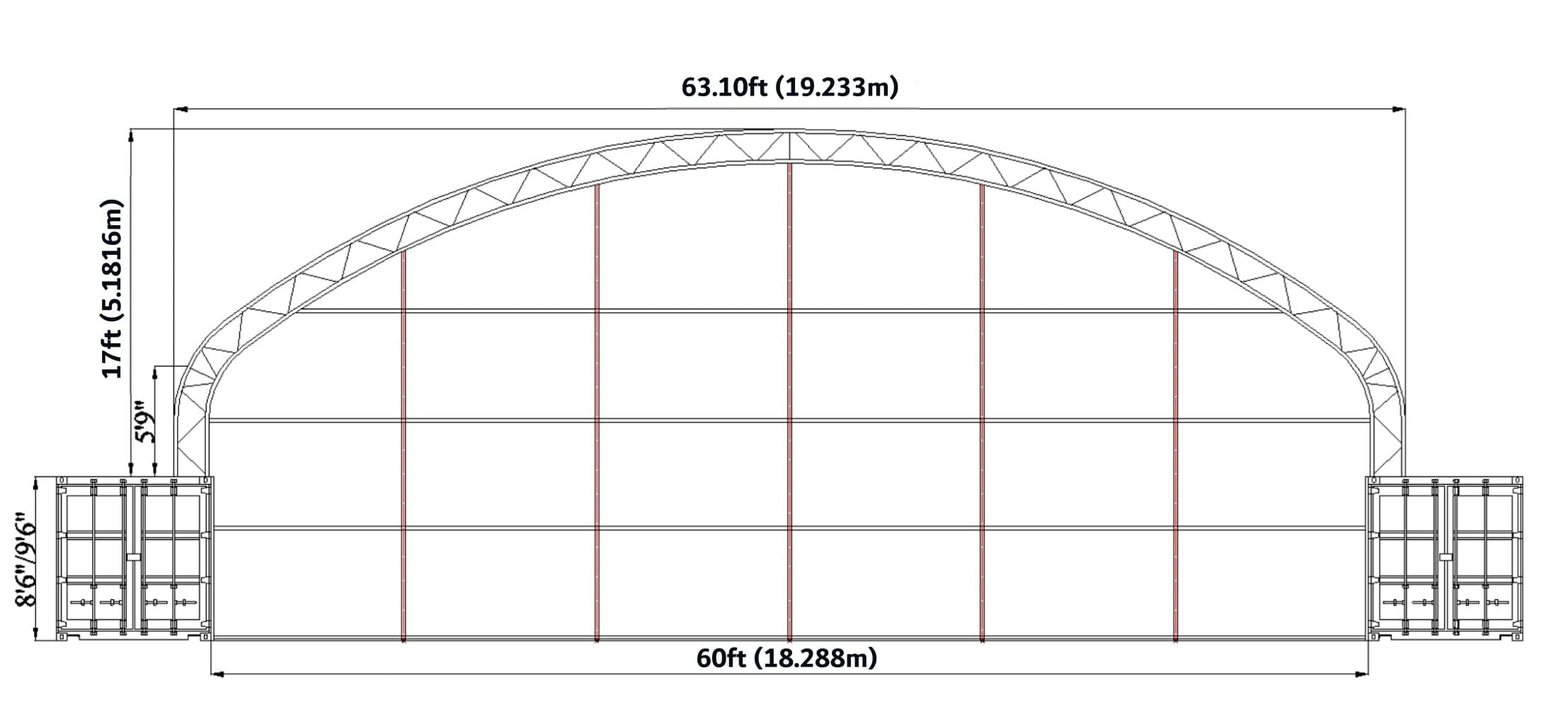

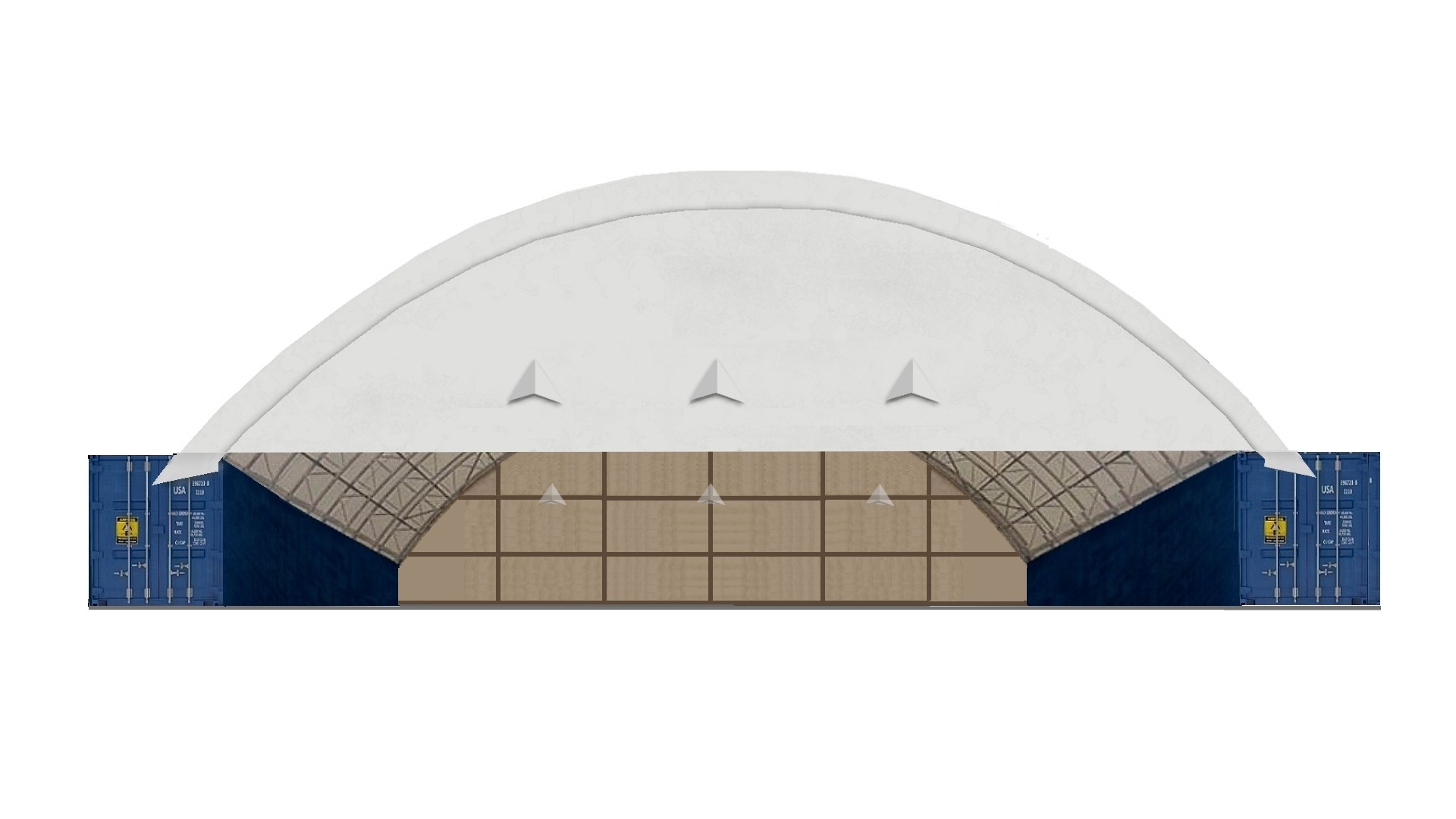

120mphAlso available:Half wall c/w 3 vents and supportsBack wall c/w 3 vents and supportsFront wall with mechanical PVC rollup doorPackaging:
2 x Steel cratesBox Dimensions:
WeightsBox A:
4’2”(1.27m)H x 3’8”(1.1m)W x 9’7”(2.92m)L 1,820lbs (825kgs)Box B:
4’2”(1.27m)H x 3’8”(1.1m)W x 9’7”(2.92m)L 1,830lbs (830kgs)Box C:
3’4”(1m)H x 3’8”(1.1m)W x 9’7”(2.92m) 2,600lbs (1,180kgs)Installation:
Weld 12 mounting plates to the containersTime for installation:
Allow 4 days with 3 persons. Weather permitting. Extra persons required to pull over the PVCInstallation manual available.
Detailed step by step instructions come with photographsMachinery required:
Welder. 25’ scissor lift
